WTX Back Plate

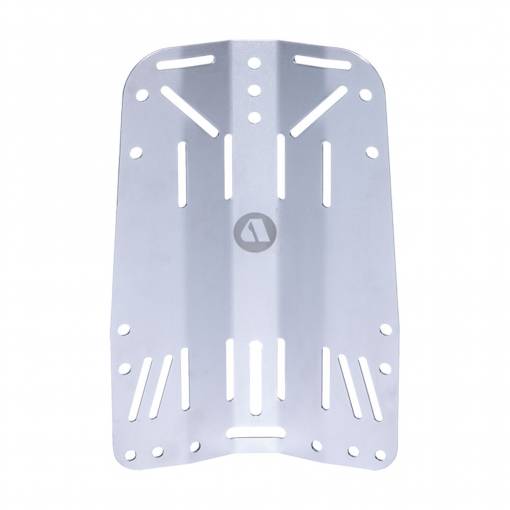

Apeks WTX Back Plate

Each component can be configured into a highly technical rig for those trained to push the limits, or scaled down to make a travel friendly set up suitable for any diver.

The backbone of any system – this cleverly designed back plate can be used with the Apeks Deluxe One-piece Webbed Harness, or inserted directly into the WTX Harness. It is available both in stainless steel and aluminium.

[dt_gap height=”30″ /]

FEATURES & BENEFITS

• Offered in either 304 stainless steel or 6061 anodized aluminum alloy.
• The stainless steel weighs 4.7 lbs (2.15 kg).
• The aluminum weighs 1.7lbs (780g).
• 4 each upper and lower slots accommodate nylon cylinder bands so a single cylinder can be strapped directly to the plate. Having a series of 4 slots provides lateral stability of the cylinder that traditional 2 slot plates cannot.
• 3 holes at the top of the plate offer a range of height adjustments for the buoyancy cells and the cylinders. In addition, a corresponding lower centre slot allows for lower band bolts that are misaligned.
• 2” wide crotch strap slot.
• Upper and lower perimeter holes along either side and holes along the bottom allow for the mounting of accessories.
• Both offer an electro-plate finish and a laser-etched Apeks logo to enhance the look of the plate.

[dt_gap height=”30″ /]

SPECIFICATIONS

Steel plate	304 stainless
Aluminum plate	6061 anodized
Weight (steel)	4.7 lbs (2.15 kg)
Weight (aluminum)	1.7lbs (780g)
Finish	Electro-plate for both
